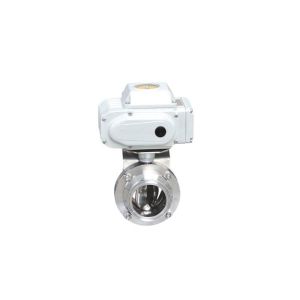

Automatic Control Electrically Operated Butterfly Valve Stainless Steel

Product Categories

Nyhau Fluid Equipment Co.,Ltd

Contact Now

Name: Automatic Control Electrically Operated Butterfly Valve Stainless Steel
Brand: NYHAU
Price: 1 USD

Brand Name : NYHAU

Certification : 3A,CE,ISO,FDA

Place of Origin : KunShan,China

MOQ : 1PC

Price : Negotiable

Payment Terms : L/C, D/P, D/A, T/T, Western Union, MoneyGram

Supply Ability : 10000PCS/Mouth

Delivery Time : 5-8 work days

Packaging Details : Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)

Working Temperature : Low Temperature, Medium Temperature, Normal Temper

Valve Body : Sheet Metal

Application : Industrial Usage, Water Industrial Usage, Household Usage

Standard or Nonstandard : Standard

Warranty : One Year

Transport Package : Box and Carton Package

Origin : China

Standard : 24V DC Electric Actuator

Contact Now

Sanitary Stainless Steel Automatic Control Butterfly Valve Electric Actuator SS304 SS316L Butterfly Valve

Product Details:

Size Range	1/2"~4", DN15~100
Acting Mode	Double Acting, Spring Return (Single Acting)
Operating Pressure	1.6MPa
Air Supply Pressure	2.5 to 8 bar
Lifespan	1,000,000 (1 Million) Times
Angle of Rotation	90° ±4°
Body Material	SS304, SS316, SS316L
Sealing Material	PTFE: -30°C~180°C
Disc Material	Stainless Steel
End Connection	Tri Clamp, Threaded, Welded
Applicable Media	Control of Water, Air, Gas, Oil, Liquid
Optional Actuation	Handlever, Electric Actuated, or Pneumatic Actuated
Optional Accessories	Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper

Product Tags:

2 inch butterfly valve
